GLATT GC 750 / 500

Coating pan GLATT

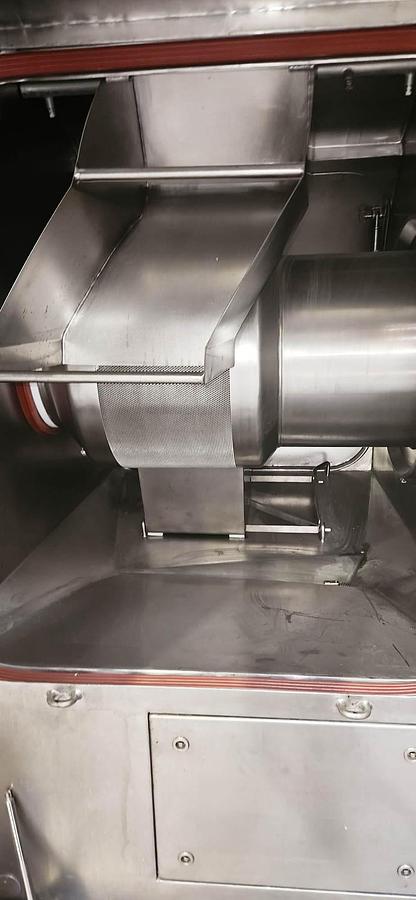

Glatt Coater GC 750/500 from 1994 with changeable drum  in Ex- Execution

• Process Equipment  Glatt Coater GC 750 ( Equipment only used for test run)

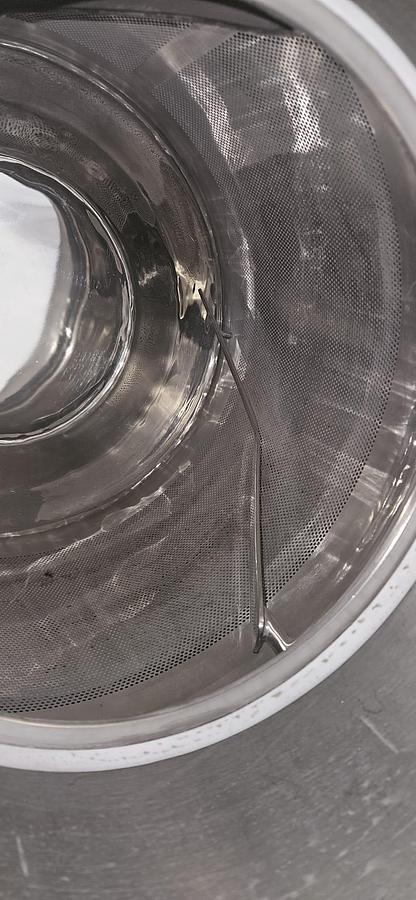

• Perforated Drum with D= 500mm Drum and 750 mm   with

     Inlet and outlet air shoe for both drums

Capacity 750 drum  50 – 75kg/batch

     Capacity 500mm drum  15- 45 kg /batch

Set Fisher baffles for better mixing

• Discharge tube from stainless steel (Discharge tube can be used also other Glatt Coater GC 750)
• Spraying Arm with nozzle adapter

Spraying System Schlick Nozzles

• Control Cabinet ( Pneum. Part ; Rital Cabinet )  with Siemens PLC

• Deduster  Herdinge 5 bar pressure proof

• WIP Nozzle inside drum
• Duct work as is from stainless steel
• All available sealings and spare parts
• All original Documents from Glatt ( Manuel and Pneum. ; Electric – Schema )
