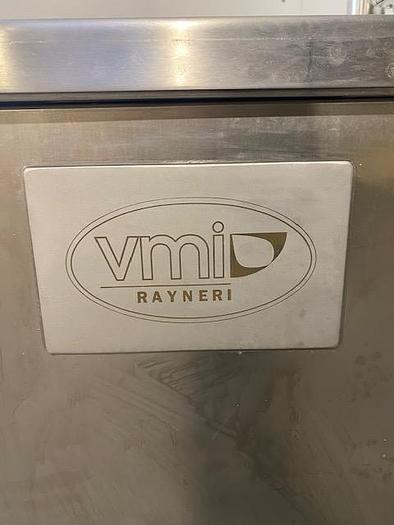

2004 VMI RAYNERI TRIMIX

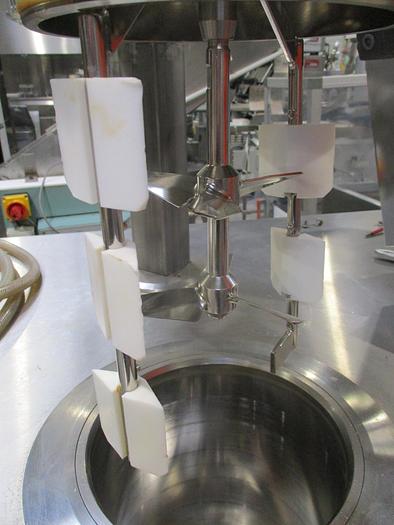

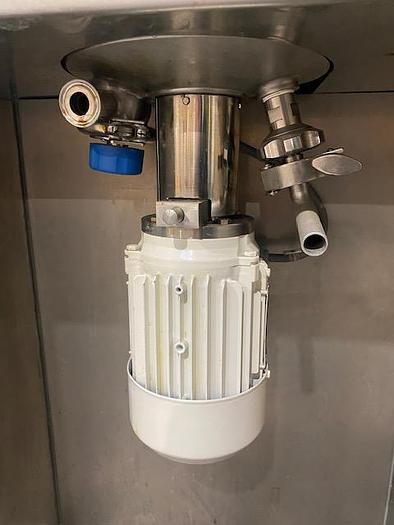

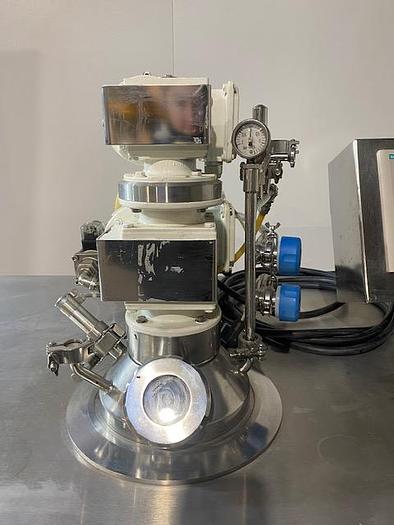

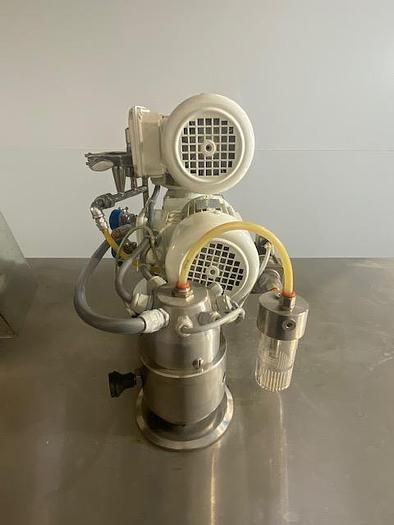

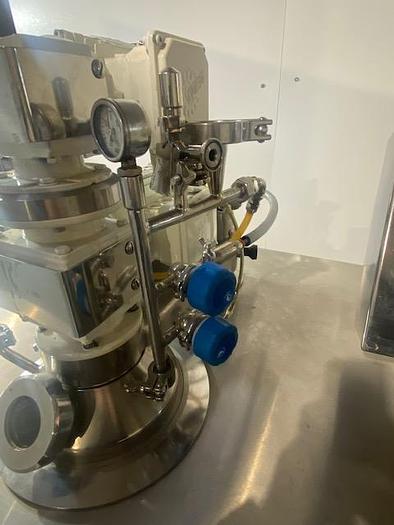

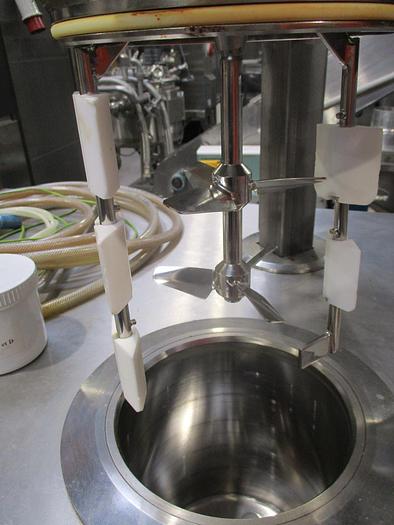

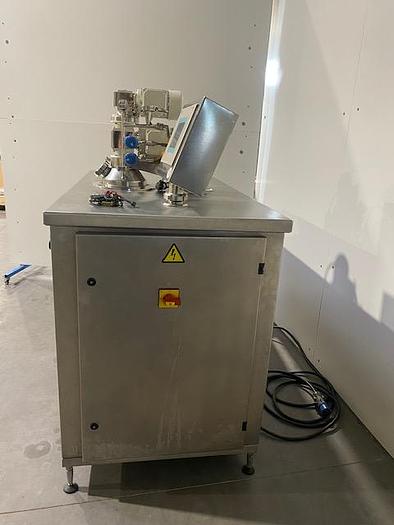

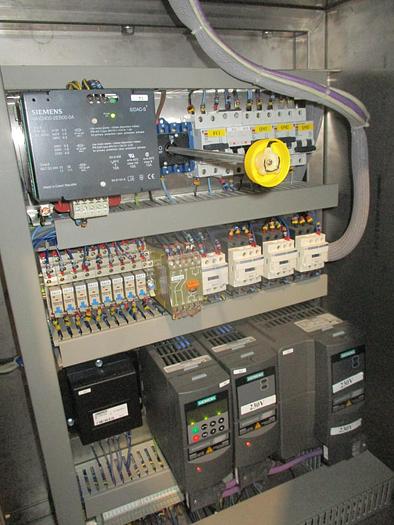

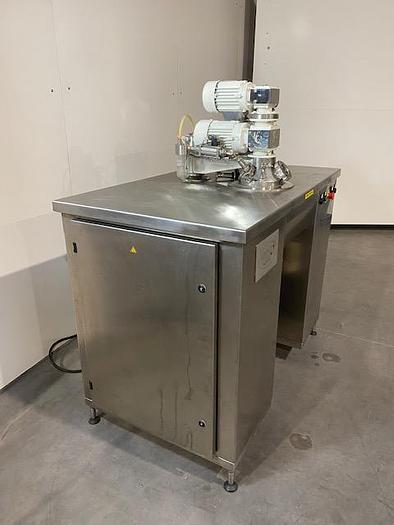

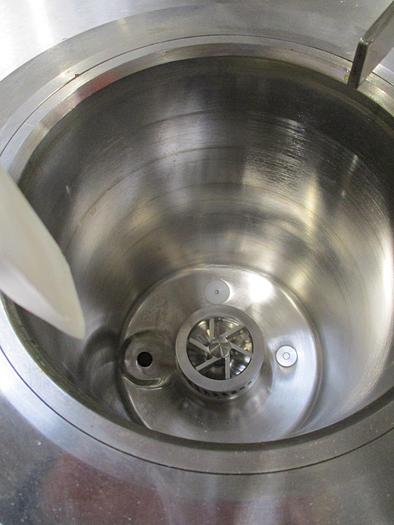

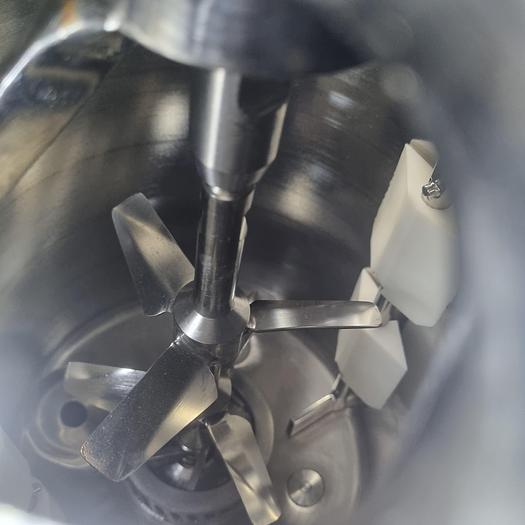

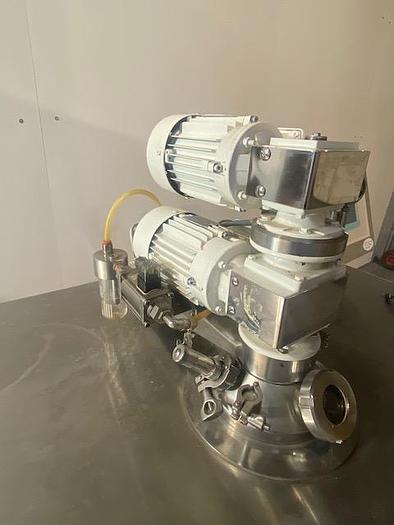

The 5 litre trimix is intended for industrial use for the production of gels, creams and ointments requiring dispersion, dissolution, homogenization, deaeration, heat exchange. The Trimix is composed of: * A table frame with stainless steel casing * A mixer with two coaxial pendulum movements: Slow peripheral movement: Engine: Power 0.25 kW Output speed reduction: 50 to 200 rpm Driven by frequency converter Agitation: Anchor blade +4 articulated PTFE scrapers Double direction of rotation Slow central counter-agitation movement: Engine: Power 0.25 kW Reducer output speed: 80 to 419 rpm Driven by frequency converter Agitation: 3 profiled three-blade turbines with a diameter of 120 mm A tank bottom emulsifier type EFC 70 GMS Engine: Power 0.75kW - speed 3000 rpm Output speed: 600 to 3000 rpm Driven by frequency converter Agitation: rotor/stator machined with narrow slots of 70 mm diameter A tank: Cylindrical with conical bottom Double 316L stainless steel jacket Double 304 L stainless steel jacket with circulation helicoid for heating or cooling
