2017 3C 150 litres

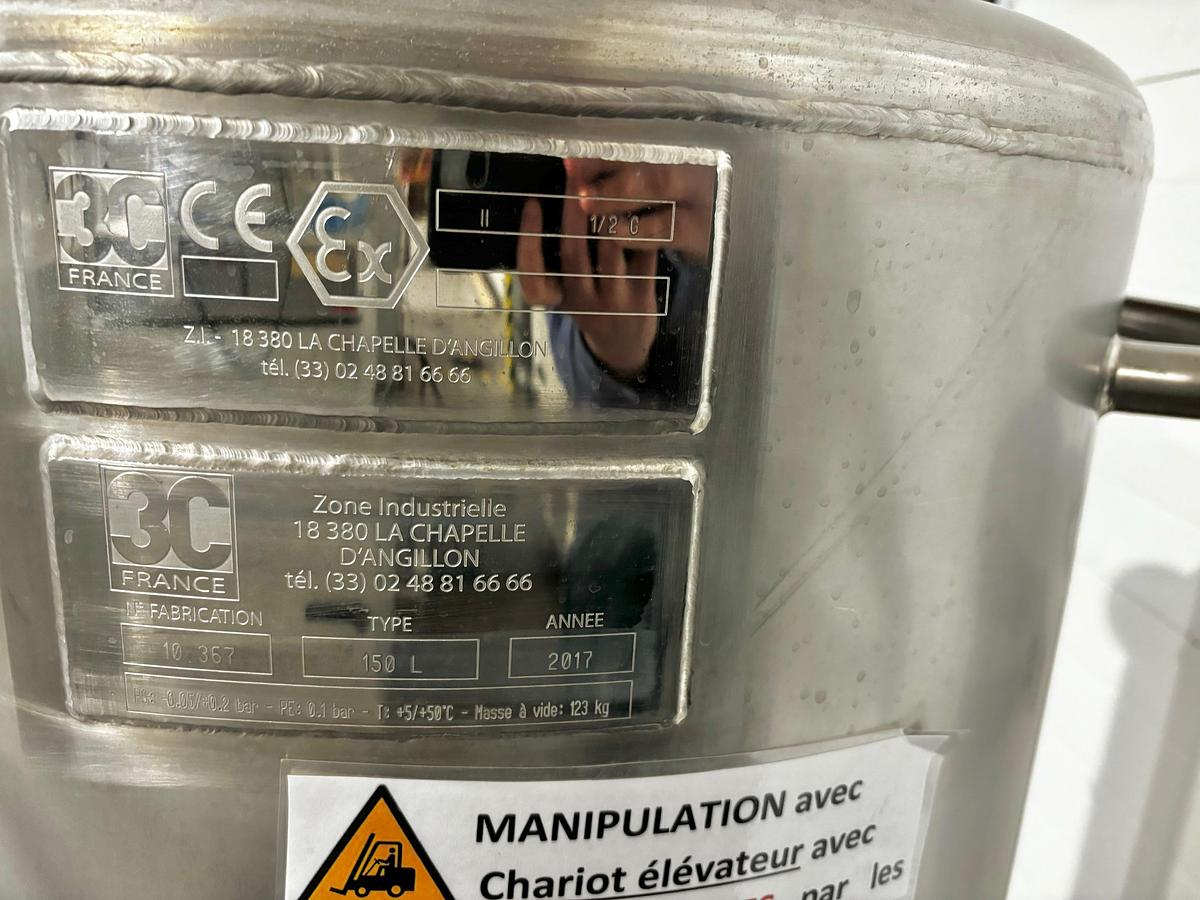

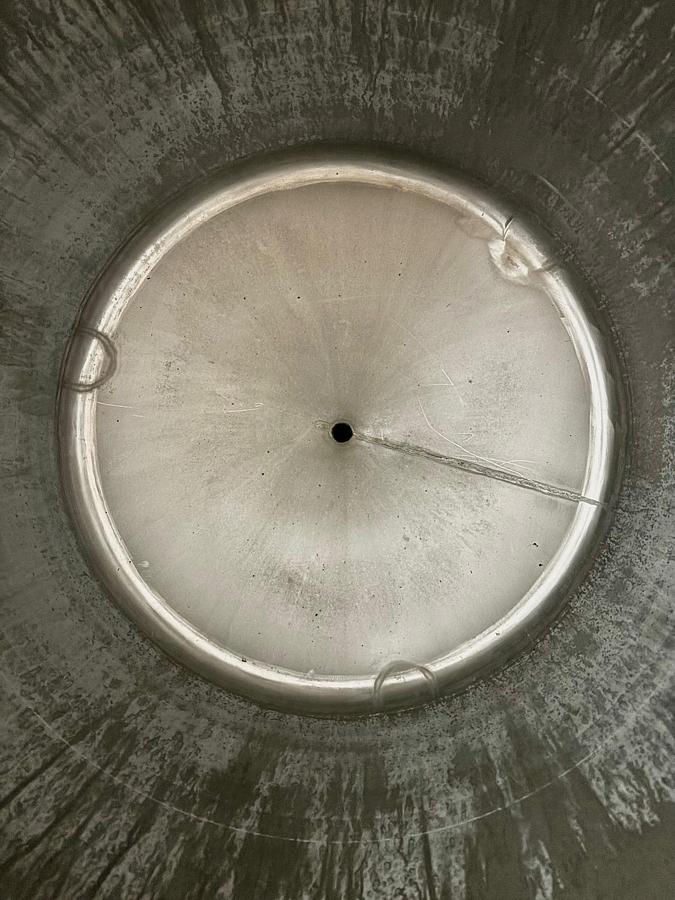

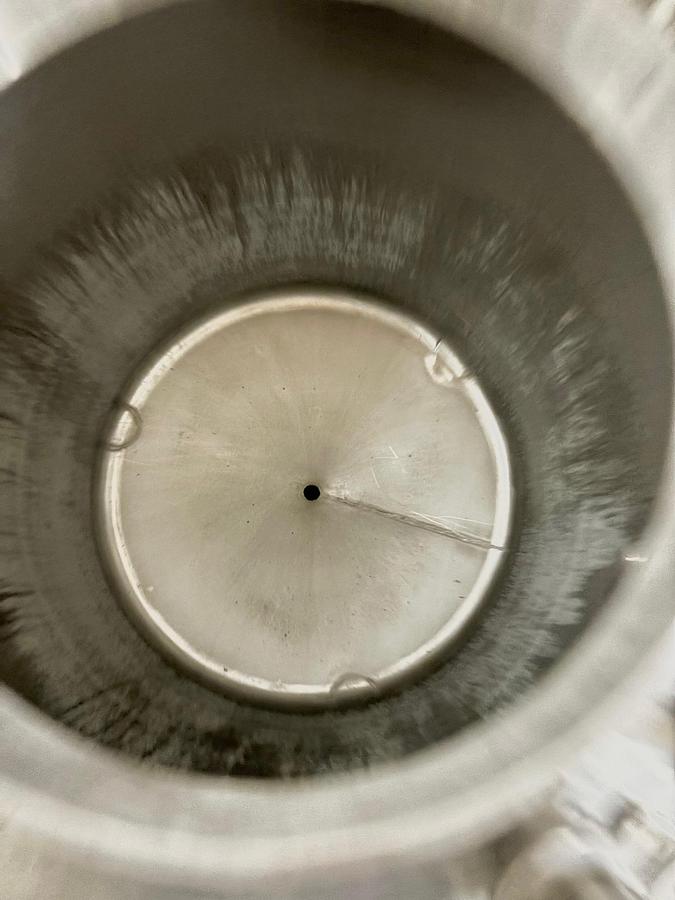

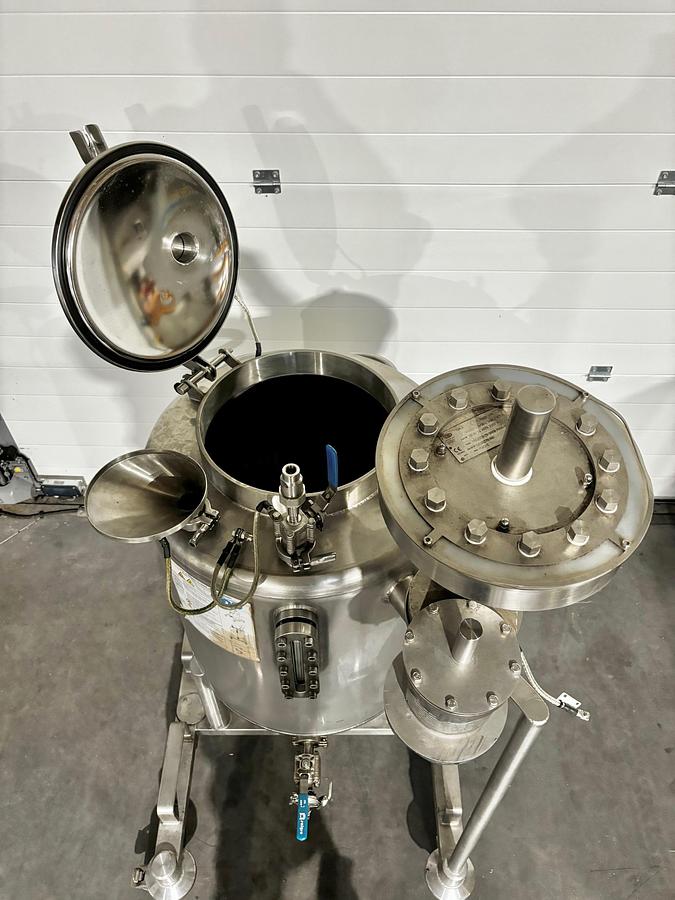

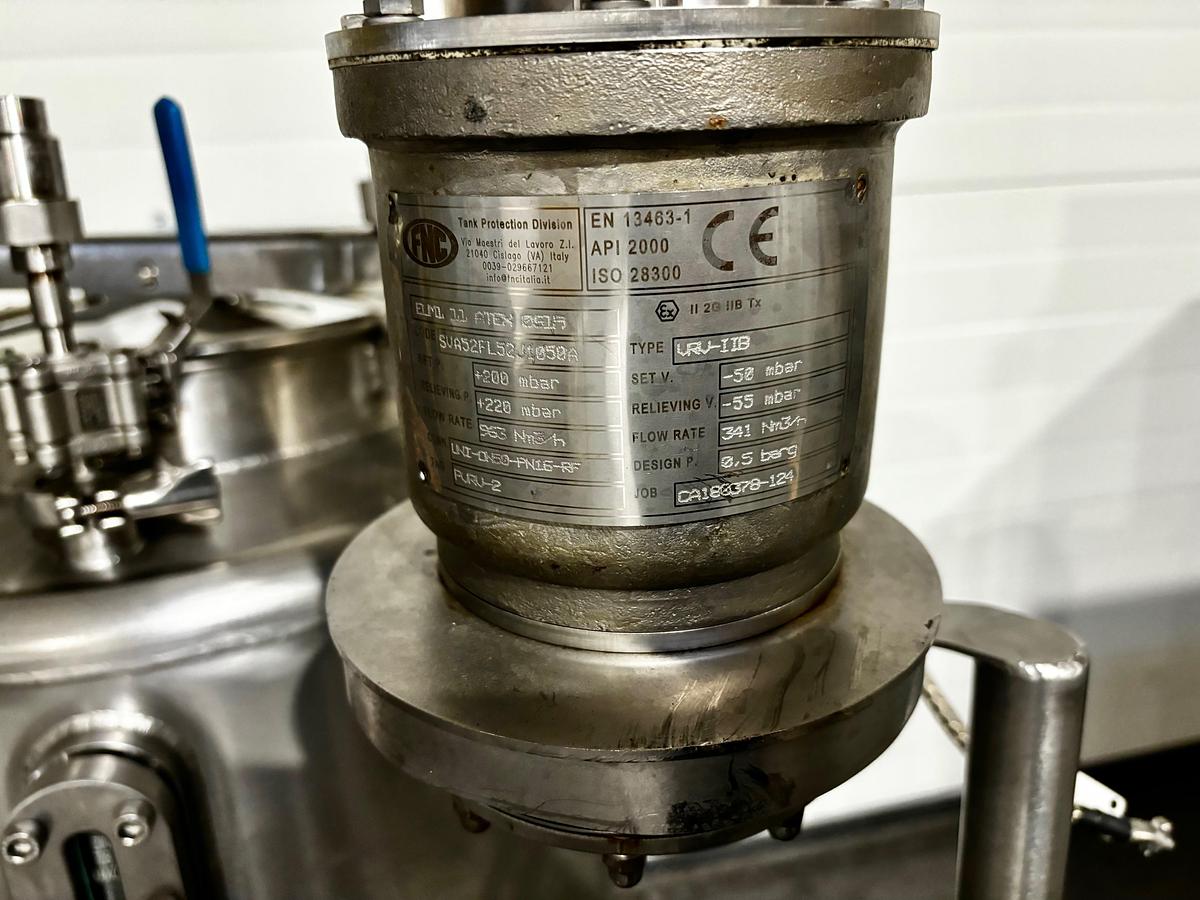

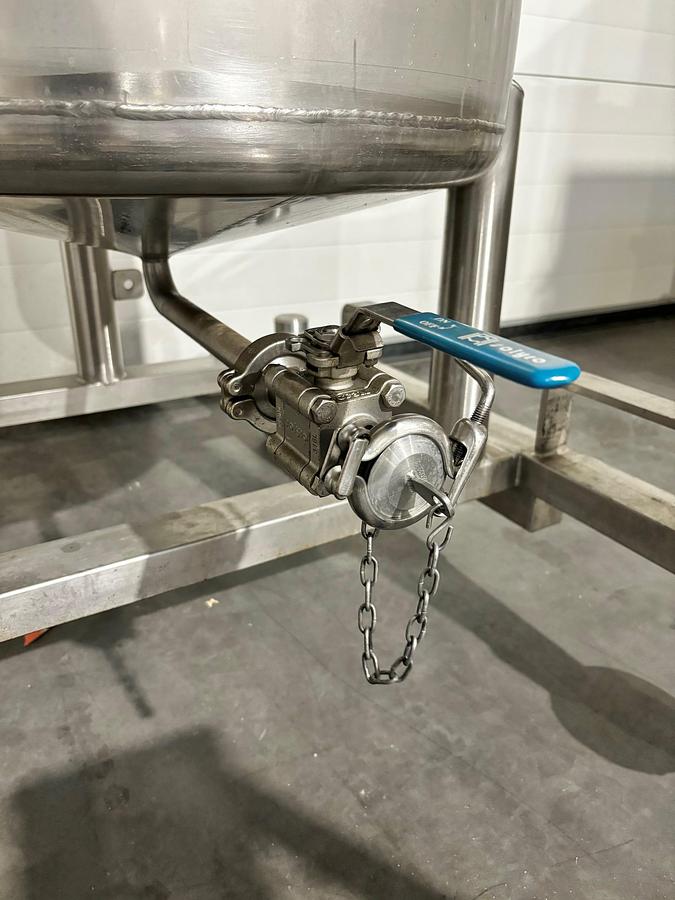

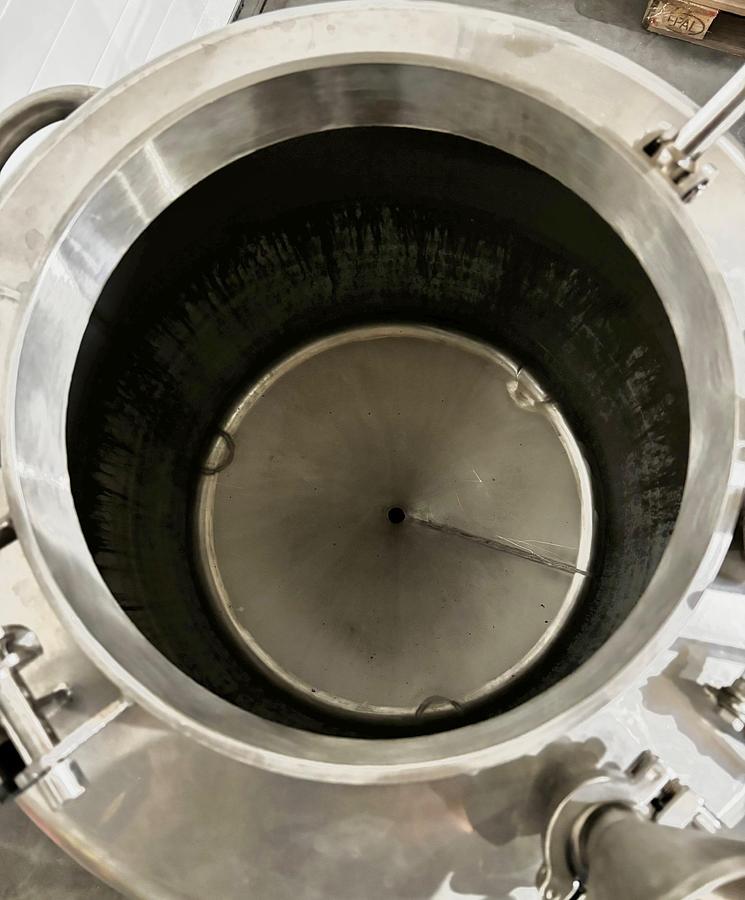

I)         CHARACTERISTICS Useful volume:                                     150 L Total volume: 175 L Footprint: 900 x 900 mm Tank diameter: 600 mm Manhole height: 1150 mm (approx.) Drain height: 225 mm Cylindrical shape with manhole on conical top and 15° conical bottom with total drainage brought forward. Vertical position on tubular feet fitted with 4 fixing plates with 4 swivel castors, 2 of which are fitted with brake (at the rear of the tank). Note: Anti-static and dissipative casters + grounding lug. II) MAXIMUM CONDITIONS OF SERVICE Working pressure: atmospheric Serving temperature: room temperature Equipment working in explosive atmospheres according to ATEX Directive 2014/34/EU. Note: a pressure/depression valve + 50 gr / - 5 gr will be provided for installation on the tapping in the center of the lid. III) EQUIPMENT III.1) On a 15° conical summit: – 1 manhole Ø 350 mm closed by bolts – 1 DN 38 clamp connection with anti-foam elbow + stainless steel funnel adaptable to DN 38 connection + DN 38 clamp cap – 1 pressure/vacuum valve – 1 DN 38 non-opening clamp connection for fixing the funnel during tank handling III.2) On a 15° conical bottom: – 1 drain, clamp connection Ø 25 + manual butterfly valve clamp / clamp Ø 25 with straight outlet + cap clamp + joint + collar. III.3) On ferrule: - 1 manufacturer's plate with CE / ATEX marking - 1 stainless steel tube handle for handling the tank - 1 rectangular viewfinder in the upper part of the shell for viewing the full tank. III.4) Tank support: Made of stainless steel tube + crosspieces + 40 x 10 mm plate for handling by stacker (same as 120 L ATEX mobile tank). IV)       MATTER Stainless steel 1.4404 for all parts in contact with the products contained. 1.4301 stainless steel or higher grade for the rest of the construction. Seals: Viton. V) FINISHING Interior: LAF 2B sheet metal, all welds raw. Exterior: Raw welds. Valve Feature: 150 liters * valve diameter: DN30 (1 1/2 inches) * Full opening pressure: 0.22 Bar * Flow rate in case of fire to be evacuated through the valve: 301 Nm3/h * Maximum acceptable pressure drop in the valve at flow rate in case of fire: 96 mBars
