2004 VMI RAYNERI TRIMIX
2004 VMI RAYNERI TRIMIX
Contact us for price
Yerville, France
Description
The 5 liter trimix is intended for industrial use for the preparation of gels, creams, ointments requiring
dispersion, dissolution, homogenization, deaeration, heat exchange.
The Trimix is made up of:
* A table frame with stainless steel casing
* A mixer with two pendular coaxial movements:
Slow peripheral movement:
Motor: Power 0.25 kW
Reduction-output speed: 50 to 200 rpm
Driven by frequency converter
Agitation: Anchor paddle +4 articulated PTFE scrapers
Double direction of rotation
Slow central movement of counter agitation:
Motor: Power 0.25 kW
Gearbox - output speed: 80 to 419 RPM
Driven by frequency converter
Agitation: 3 streamlined three-blade turbines with a diameter of 120 mm
A tank bottom foam concentrate type EFC 70 GMS
Motor: Power 0.75kW - speed 3000 rpm
Output speed: 600 to 3000 rpm
Driven by frequency converter
Agitation: 70mm diameter narrow slot machined rotor/stator

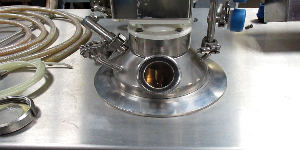

A tank:
Cylindrical with conical bottom
Double jacket in 316L stainless steel
304 L stainless steel double jacket with circulation helicoid for heating or cooling
Specifications
Manufacturer | VMI RAYNERI |
Model | TRIMIX |
Year | 2004 |
Condition | Used |
Serial Number | 134853 |
Link to manufacturer | https://www.vmimixing.com/fr/equipements/homogeneiseurs-pilote-sous-vide/ |
Sound level | <70dBA |
terms of service | Pressure |
Installed capacity | 2kW |
Air process tank | max. 0.5 bar |
Temperature | 90°C |
Weight (kg) | 342,4 |
