screw powder transfer

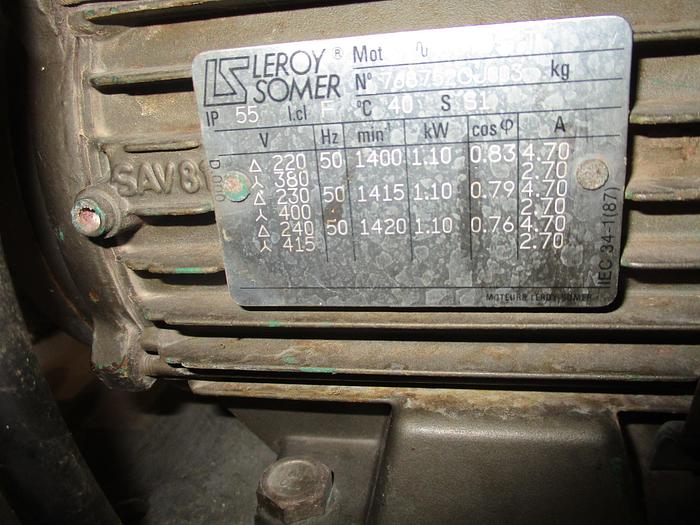

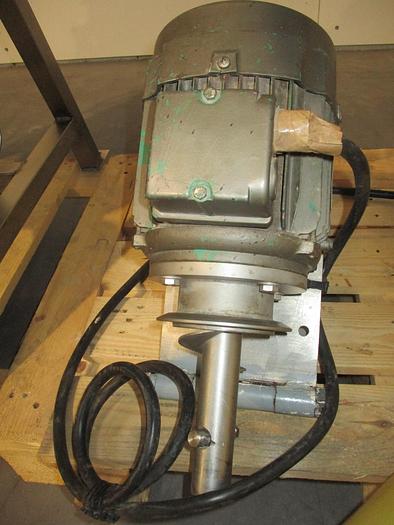

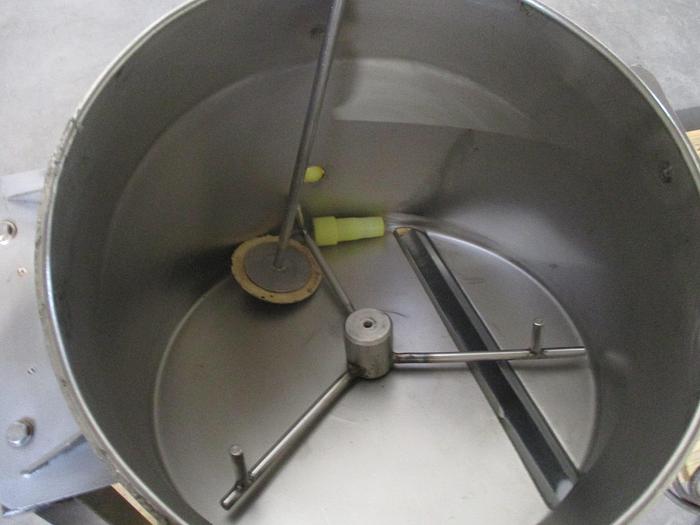

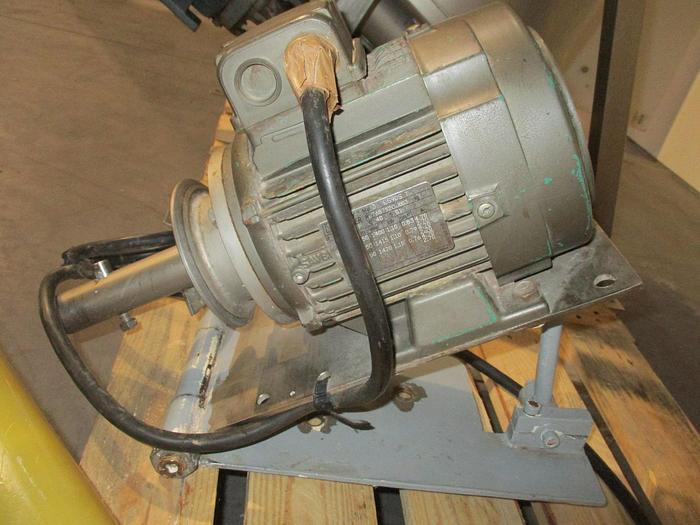

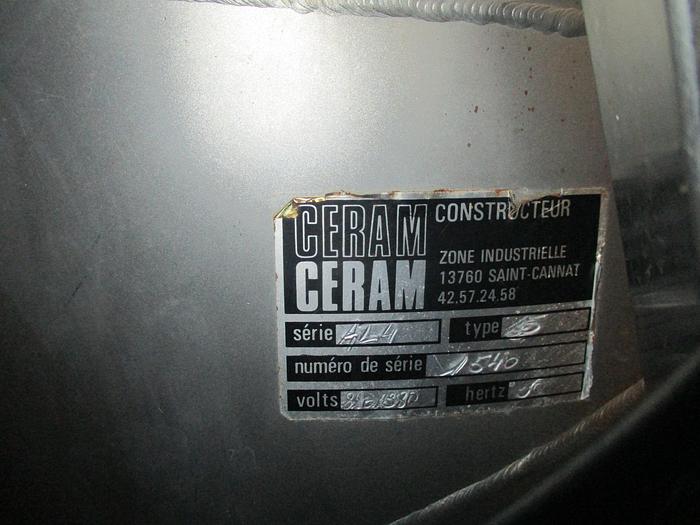

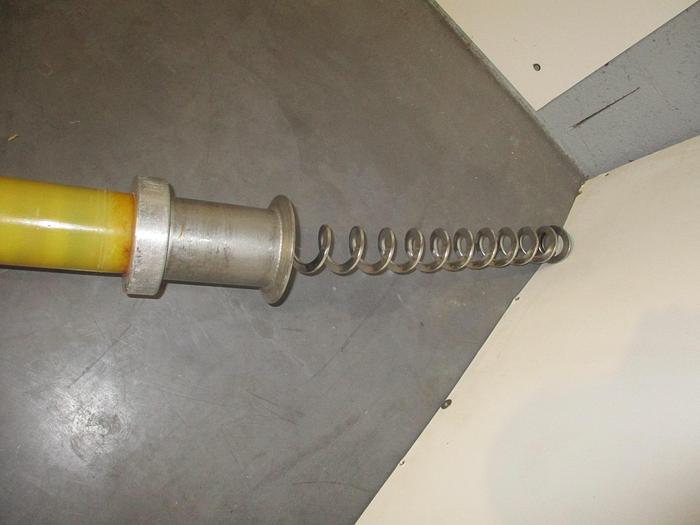

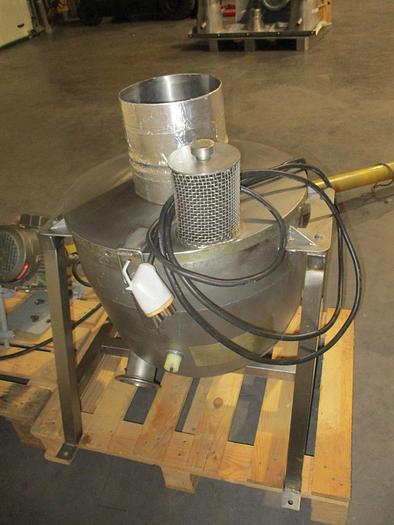

CERAM powder transfer with flexible screw of 4 m with feed hopper. Extractor type ECI 500/C50 according to descriptive notice S049/0791 * 30° inclined start * Cylindrical hopper capacity 50 liters, diam.500 mm, total height on frame 600 mm * hopper lid for sealed emptying of big-bags with pegs diam. 200 mm, height 50 mm * flat-bottomed extractor diam.500 mm controlled by a 230/400 V three-phase geared motor (EEC standards) 50 Hz, Leroy Somer, IP 55 , 1.1 kW, with Teflon cable gland between the bottom of the extractor and the motor, allowing perfect sealing * capacitive detector low level of product in the hopper * firm stainless steel tube support frame Flexible feeder type AL 4 SR/FP according to descriptive notice S022/0791 Length 4000 MM - Elevation 2400 mm Fixed flow approx. 3000 litres/h * special return probe under ECI * "Rilsan" flexible polyamide tube diam. outside 80 * special high-strength treated stainless steel coil * GE type evacuation chute diam. 150 mm product outlet with manhole and manhole plug * Leroy Somer 230/400 three-phase motor (EEC standards), 50 Hz, IP 55, 1.1 Kw * Quick dismantling of the feeder by 3 clamp collars
